  • LM130 120W

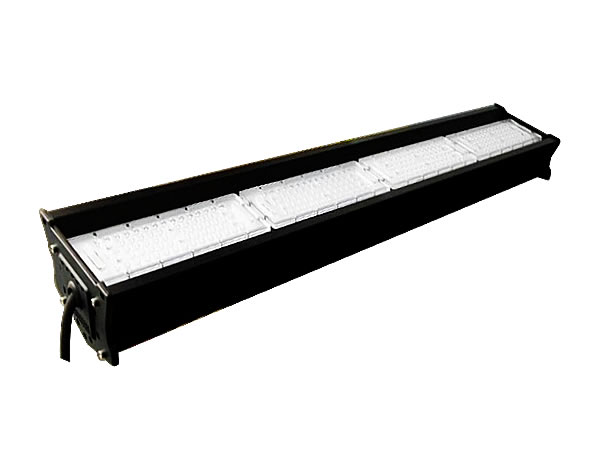

LM130 120W
LM130 120W


LED Linear High Bay Light Parameters
Input VoltageAC100V - 240VFrequency Range50Hz - 60Hz
Total Harmonic Distortion≤12%Power Factor﹥0.96
Power Efficiency﹥90%LED Working VoltageDC42~ 54V
System Consumption120±5%LED Quantity1 PCS
Led Luminous Efficiency100LM/WLed Initial Flux15600lm
Illumination Uniformity﹥0.5Lamp's Efficiency﹥80%
Color TemperatureWW3000K   ±10%Color Rendering IndexRa﹥70
PW4200K   ±10%Light DistributionSymmetric /Circular light spot
CW6200K   ±10%Light DesignLED + Reflector
Junction Temperature≦40℃IP GradeIP65
LED Working Life-span50000HPower line1.0mm2 cable

BrownL LiveNW5.0kg
Connect wireBlueN NeutralGW(2pcs)5.2kg

Yellow/GreenG Ground1pcs Packing Size775*180*130mm
Ambient Temperature-450C~+600C2pcs Packing Size
Finish ColorSliver, black CertificateCE,UL,DLC



Main Advantages of linear led high bay light:
1) Modular design,Composed of different wattage.120W/150W/200W
2) 130LM/W with Nichia chips,Epistar chips
3) 60*90 / 120 degree Beam angle
4) 5-year warranty.IP65 waterproof
5) Sensor function and Emergency are all vailable

Trade terms:
1.Payment: T/T (Western Union or Paypal are welcomed).
2.Sample can be delivered within 3days.mass 10-35 days.
3.Shopping freight are quoted as your requestment.
4.Shipping port: Shenzhen, Mainland China.
5.Discounts are offered based on order quantities

1. 100% lead-free & 100% mercury- free.
2. Over 50000 hours life span.
3. No UV and IR radiation
4、Adopt one integrated LED chip as light source which has independent intellectual property rights,the light source design is using special integrate multi-chips a module,use high bright imported led chips, with good heat dissipation , low light depreciation, pure light color, no double-shadow etc.
5、Unique heat sink design perfectly combine with power box, effectively transmit the heat, thereby lowering the body’s temperature, ensure the life of light source and power.
6、The heat sink surface have conducted anodic oxidation anti-corrosive process., compact layout and beautiful,corrosion resistant、water proof and dust proof.
7、Apparent energy saving effect, use high power LED and it is equipped with imported high efficient power, save more than 70% energy compare with sodium lamp.



LM130 150W
LM130 150W
LM130 200W
LM130 200W
